Scope of delivery and mounting options
Dieser Inhalt ist noch nicht in deiner Sprache verfügbar.
Scope of delivery
Section titled “Scope of delivery”| Item | Remarks | Qty |
|---|---|---|
| Series Pro 35 storage unit | 1 | |
| Solis inverter S6-EH3P20K-H, including accessories | Pre-assembled or separate, depending on configuration. User manual on the Solis website. | 1 |
| Front and rear transport frames | Can be returned to modual, or used as firewood (untreated wood) | 1 |
| Pallet frames | Collected by the carrier | 4 |
| Pallet lid | Returned via the carrier | 1 |
| Clamping set | 2 |
The Pro 35 is delivered on a pallet, enclosed by the pallet frames and lid.
Battery pack mounting
Section titled “Battery pack mounting”-

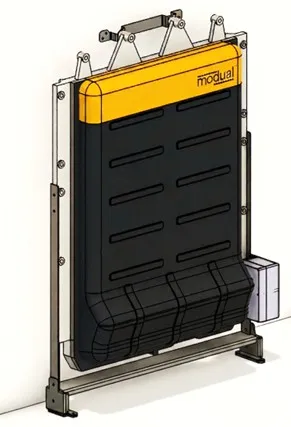

Wall mounting (standard). The battery pack stands on the floor and is fixed to a load-bearing wall.
-

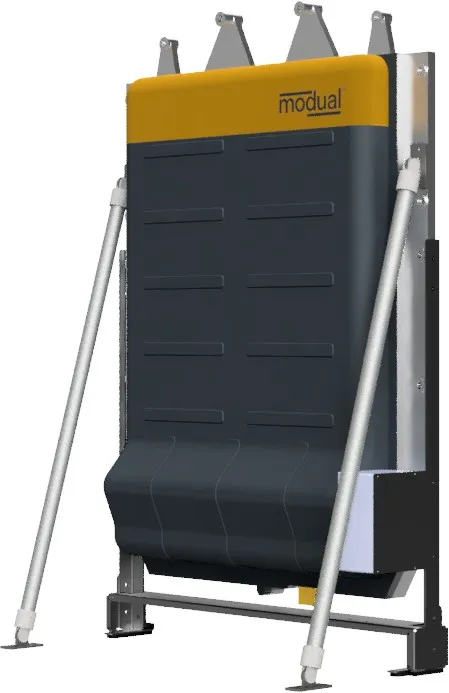

Freestanding. Requires optional parts with support struts. Only recommended if the battery cannot be installed on a load-bearing wall.
Inverter mounting
Section titled “Inverter mounting”On the wall
Section titled “On the wall”

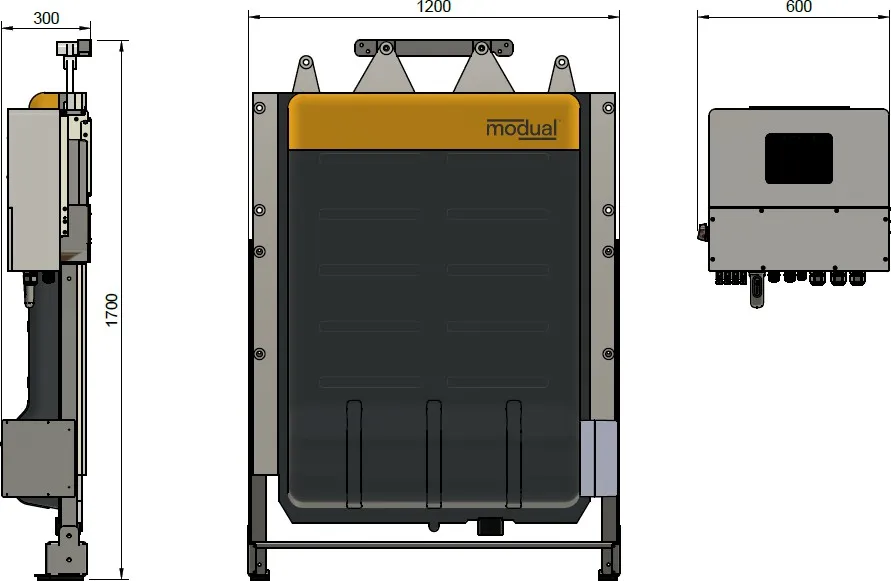

The inverter is mounted on the wall in any position using the wall bracket supplied with the inverter. The cables allow a radius of approximately 1.5 m around the battery pack, measured from the HV connector at the top centre of the pack.
| Dimension | Battery pack | Inverter |
|---|---|---|
| Width | 1200 mm | 600 mm |
| Height | 1700 mm | |
| Depth | 300 mm |
On the battery pack

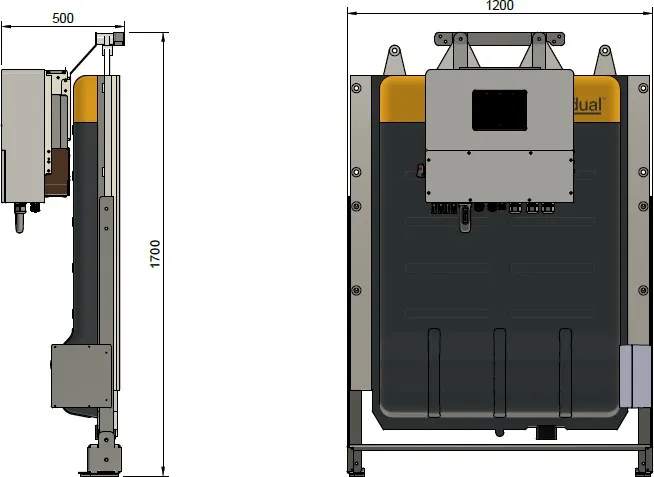

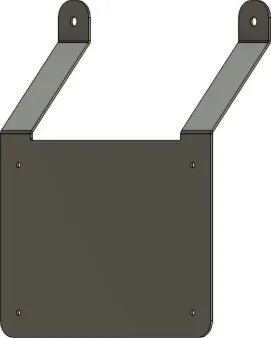

Section titled “On the battery pack”The inverter is supplied pre-assembled on the battery pack and pre-wired. This option must be specified when ordering, because an optional bracket is fitted. The total depth is then 500 mm (width 1200 mm, height 1700 mm).
