Mechanical installation

Handling

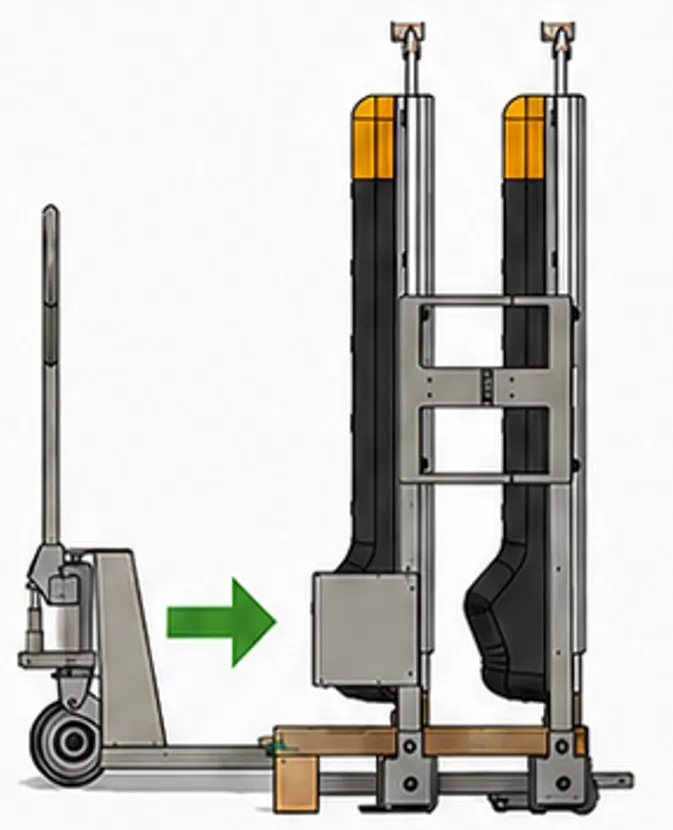

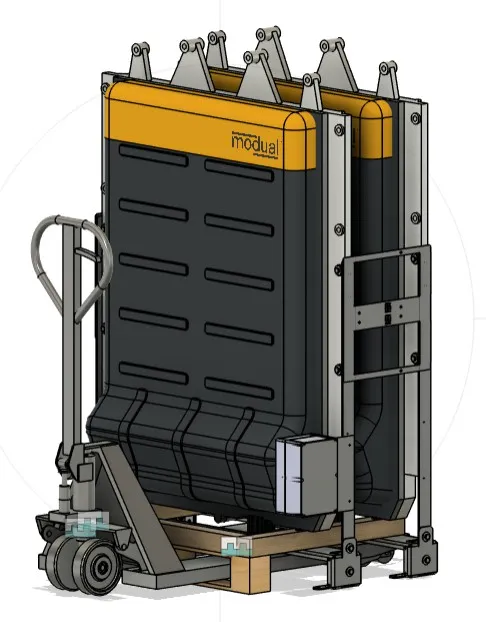

The storage unit must only be lifted and transported from the front with a pallet truck.

Risk of tipping

Carry out this step with at least two people. Depending on the pallet truck, the centre of gravity may be poorly balanced and the storage unit may be unstable.

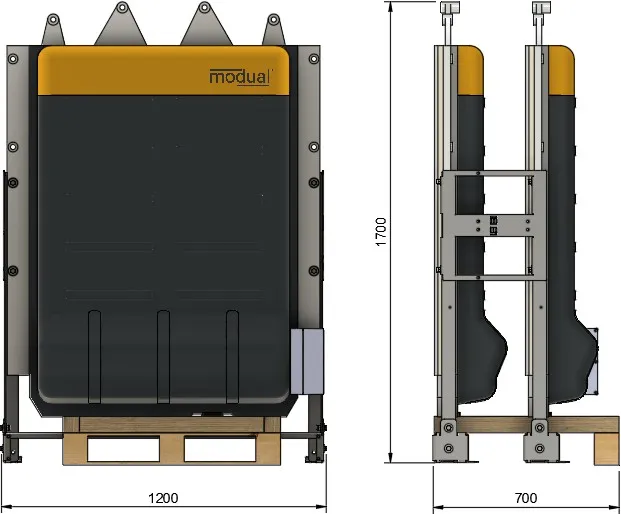

Condition	Width	Depth	Height
As delivered	1200 mm	700 mm	1700 mm

Installing the battery packs

1. Remove the strapping and the protective film from the storage unit.

2. Move the storage unit to the desired position with a pallet truck.

   Risk of tipping

   Carry out this step with at least one other person.

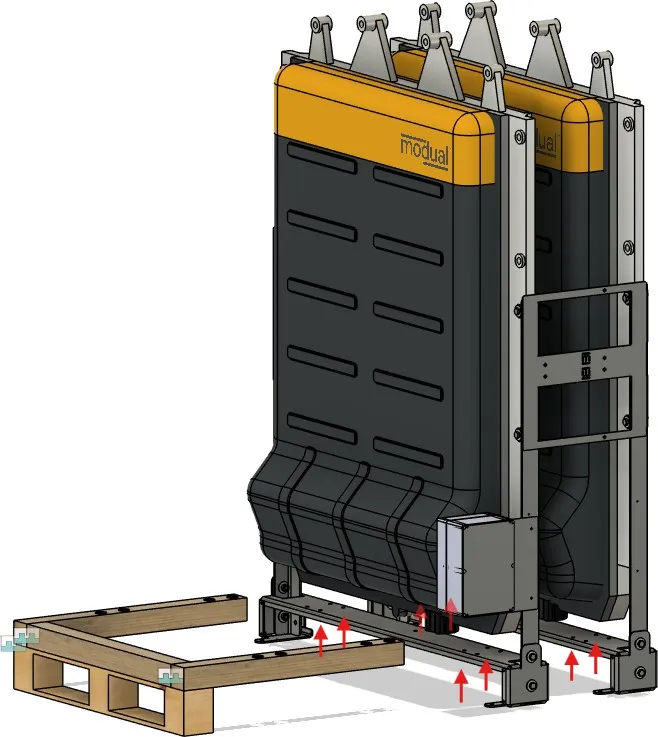

3. Remove the transport frame by loosening the 8 screws.



4. Position the storage unit as required and level it, using shims if necessary.



5. Fix the storage unit to the floor with M8 bolt anchors, using at least three of the four fixing holes.



Installing the inverters

• Inverters on the pack (left or right): hang the inverters on the brackets and secure them with the supplied locking screw, as described in the Solis user manual. Mount the master (70-1) in the upper position and the slave (70-2) in the lower position.
• Inverters on the wall: install the inverters according to the Solis installation instructions.

Continue with the electrical connections.
